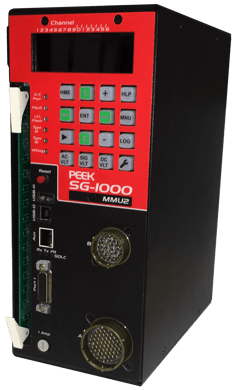

Malfunction Management Unit - SG-1000

Peek Traffic sets the new standard for NEMA Conflict Voltage Monitors and NEMA Malfunction Management Units with the Peek SG-1000 Series Monitors.

The Peek SG-1000 Series Monitors offer an improved display for the dynamic status display of each input on each channel.

  • Supports Flashing Yellow Arrow per ammendment 4 of NEMA TS2-2003
  • Exceeds both NEMA TS1-1989 functional and environmental requirements for a conflict monitor and NEMA TS2-2003 for functional and environmental requirements for an MMU. USB port is an industry 1st.
  • The large keyboard reduces menu steps and complexity in the data entry system and eliminates the clutter and confusion of multiple dip switches.
  • Records high and low voltage conditions. Initially brought in Double Diamond, continued in SG-1000
  • Voltage measurement and display of all signal indicators for each channel and color input for TS1/TS2
  • 4 x 20 yellow OLED – fully operational over temperature without the need for backlight or contrast control
  • Event log – downloadable to USB flash drive or to PC through USB device port or optional serial/Ethernet port
  • User-friendly, menu-driven 16-key data entry system has tactile and audible feedback, eliminating the need for cumbersome dip switches
  • Front panel USB device port, optional EIA232 or ethernet, for printing the event log and all user settings and program card jumpers

Specifications

  • Power: 89 to 135V AC, 50/60Hz
  • Requirements: 220V option: 89 to 265 V AC, 50/60 Hz
  • Humidity: 0 – 95% non-condensing
  • Environment: Meets NEMA environmental standards
  • Compatibility: NEMA TS-1 12 channel or NEMA TS-2 16 channel
  • Operating temperature: -40°F to 176°F (-40°C to 80°C)

Event logging and Recording

  • Logs 200 events including reset
  • Voltage log records outside of users thresholds
  • Replay mode allows a user to view the last twenty GYR displays prior to a fault
  • Real-time clock provides time and date stamp in each event to nearest second
  • Logs complete channel status at time of fault
  • Keyboard options allow separate printing of event log and unit settings
