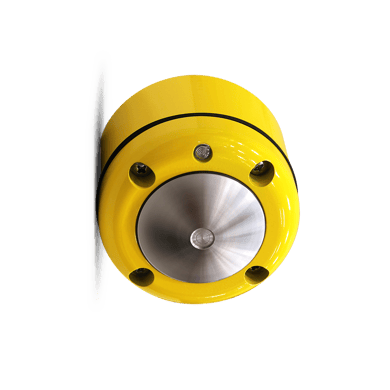

BCU-200 – Pedestrian Push Button BCU-200 – Pedestrian Push Button-2 BCU-200 – Pedestrian Push Button-3 BCU-200 – Pedestrian Push Button-4

Orange Traffic’s BCU-200 all-metal pedestrian push button is sturdy and highly durable.

This push button is comprised of a pressure switch housed in a phenoplast enclosure. A specially designed ball device reduces the coefficient of friction between the functional components. All components are precision machined.

Orange Traffic’s push button is compliant with the Americans with Disabilities Act as well as the Manual on Uniform Traffic Control Devices (MUTCD) in the United States.

Materials

  • Face: 6061-T6 aluminium
  • Actuator: Stainless steel or aluminium
  • Terminals: Stainless stee

Colours

  • Yellow
  • Black
  • Green
  • Transparent – Natural

Technical characteristics

  • Operating voltage: up to 250 VDC/VAC
  • Line voltage: 50 V
  • Maximum current: 15 A
  • Operating temperature range: –15 to +80°C (5 to 176 °F)
  • Actuating force: less than 13.3 N (3 lbf)
  • Service life: 10 million operations

Dimensions

  • Round button measuring 76 mm (3″) in diameter
